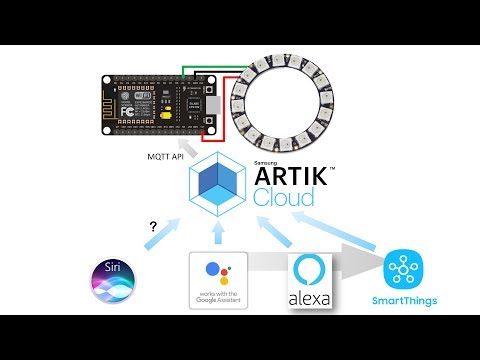

ESP8266 Connecting to Samsung ARTIK Cloud https://my.artik.cloud/
An application made for ESP8266 to comunicate with ARTIK Cloud
- Connects to ARTIK Cloud via MQTT SSL port 8883
- ARTIK Cloud is connected to all assistant platforms, integration is seamless
- Compiles on ESP8266-arduino core v2.4.2, v2.5.0-beta3, git version
platformio.ini is included, use PlatformIO and it will take care of installing the following libraries.
| Library | Link | |
|---|---|---|
| ESPAsyncUDP | https://github.com/me-no-dev/ESPAsyncUDP | |
| ESPAsyncTCP | https://github.com/me-no-dev/ESPAsyncTCP | |
| Adafruit NeoPixel | https://github.com/adafruit/Adafruit_NeoPixel | |
| NeoPixelBus | https://github.com/Makuna/NeoPixelBus | optional: #define USE_NEOPIXELBUS |
| ESPAsyncWiFiManager | https://github.com/alanswx/ESPAsyncWiFiManager | #define USE_WIFIMANAGER |
| ESPAsyncDNSServer | https://github.com/devyte/ESPAsyncDNSServer | |
| ESP Async WebServer | https://github.com/me-no-dev/ESPAsyncWebServer | #define USE_ASYNC_WEBSERVER |
| ArduinoJson | https://github.com/bblanchon/ArduinoJson | |
| WebSockets | https://github.com/Links2004/arduinoWebSockets | optional: //#define USE_ASYNC_WEBSERVER |
| WiFiManager | https://github.com/tzapu/WiFiManager | optional: //#define USE_ASYNC_WEBSERVER & #define USE_WIFIMANAGER |
Check this issue for latest progress.
- Connect 5V to + of WS2812B and VIN of NodeMCU or voltage regulator in of your favorite ESP8266 board
- Connect GND to GND of WS2812B and ESP device
- Connect GPIO3/RX pin of ESP8266 to WS2812B
- Attach at least a 1000μF capacitor between 5V and GND near the first LED
